Object diagram in Unified Modeling Language (UML), is a diagram that shows a complete or partial view of the structure of a modeled system at a specific time.

UML object diagram

Instance specifications

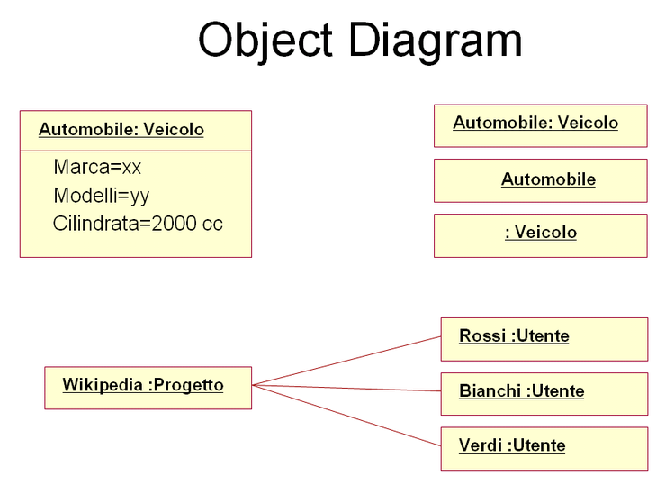

Each object and link on an object diagram is represented by an InstanceSpecification. This can show an object's classifier (e.g. an abstract or concrete class) and instance name, also attributes and other structural features using slots. Every slot corresponds to a single attribute or feature, it may include a value for that entity.

The name on an instance specification optionally shows an instance name, a ':' separator and optionally one or more classifier names separated by commas. Contents of slots are included below the names, in a separate attribute compartment. The link is shown as solid line; it represents an instance of an association.

Usage

If you are using a UML modeling tool, we will typically draw object diagrams using some other diagram type, like as on a class diagram. Object instance may be called an instance specification or just an instance. Link between instances is generally referred to as a link. The other UML entities, such as an aggregation or composition symbol (a diamond) may also appear on an object diagram.
